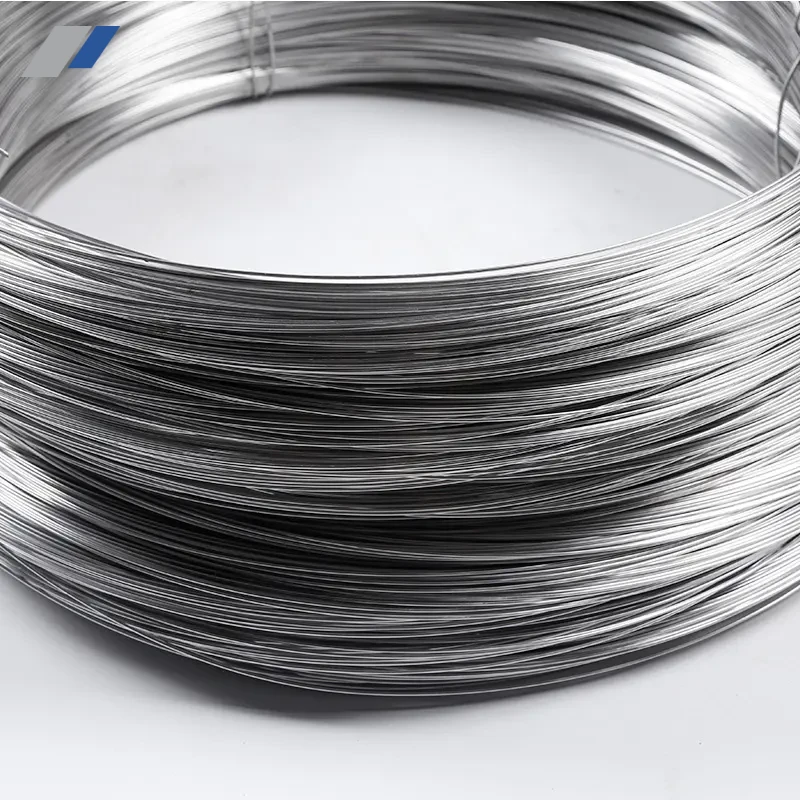

310S Stainless Steel Wire

Stainless steel wire, also known as stainless steel wire, is a variety of silk products of different specifications and models made from stainless steel as raw material. It originates from the United States, the Netherlands, and Japan, and generally has a circular or flat cross-section. The common stainless steel wires with good corrosion resistance and high cost-effectiveness are 304 and 316 stainless steel wires.

Name	Stainless steel wire
Main material	201 /202 /204/ 207/ 207Cu /301 /302 /303 /303B /304 /304L /304N /308 /308L /308LSi /309 /
	309L /309LSi /309S /309Si /310/ 310S /314 /316 /316L /316LSi /321 /330 /347 /348 /389 /410 /
	420/430
Surface finish	Matt or bright
Diameter	0.03-20mm or custom
Standard	GB/AISIIS/SUS/UNS/DIN/BS
Length	500m-2000m/reel or as your requirement
Application	Spring, BBQ mesh, wire forms, cable, clothes hanger, dish rack,
	Artistic work, fishery, steel wire ball, precise instrument, medical instrument, oil field etc.
Features	Bright surface/good formability/good elasticity/High dimensional accuracy/anti-
	corrosion/acid-resistant/high temperature resistant/wear-resistant/ hard to age/high
	tensile strength/chemical composition stability/purity
Price Term	Ex-Work，FOB, CIF, CFR

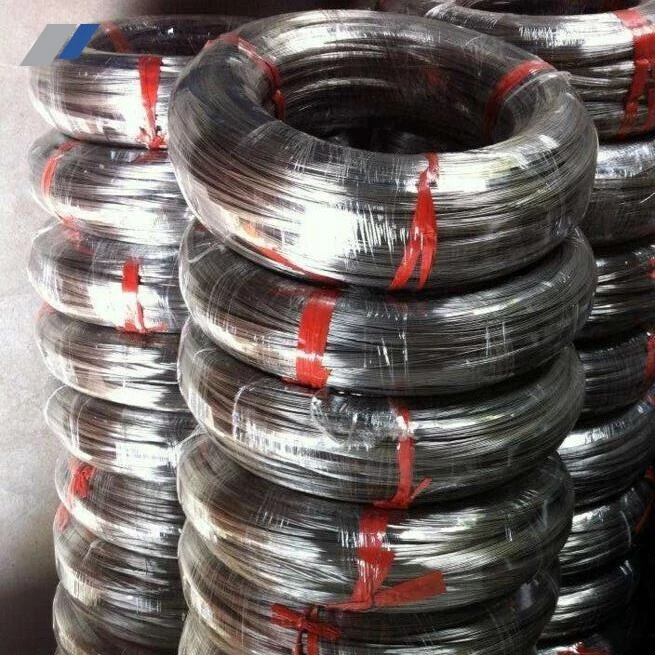

Package	1. Carton package
	2. Wooden package
	3. As your requirement

Composition of Stainless Steel

Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.

Grade	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu
201	≤0.15	≤0.75	5.5~7.5	≤0.060	≤0.03	16.00~18.00	3.5~5.5	–	–	0.08
202	≤0.15	≤1.00	7.5~10.00	≤0.060	≤0.03	17.00~19.00	4.0~6.0	–	≤0.25
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	6.00~8.00	–
302	≤0.15	≤1.00	≤2.00	≤0.035	≤0.03	17.00~19.00	8.00~10.00	–
304	≤0.07	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	8.00~10.50	–
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	9.00~13.00	–
310S	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	24.00~26.00	19.00~22.00	–
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	10.00~14.00	2.00~3.00
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	12.00~15.00	2.00~3.00
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	17.00~19.00	9.00~13.00	–
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.03	16.00~18.00		–
2205	≤0.03	≤1.00	≤2.00	≤0.030	≤0.015	22.00~23.00	4.5~6.5	2.5~3.5
2507	≤0.03	≤0.08	≤1.20	≤0.035	≤0.015	24.00~26.00	6.00~8.00	3.0~5.0
904L	≤0.02	≤1.00	≤2.00	≤0.045	≤0.035	19.00~23.00	23.00~28.00	4.0~5.0		1.0~2.0
INCONEL028	≤0.03	≤1.00	≤2.50	≤0.030	≤0.030	≤28.0	≤34.0	≤4.0		≤1.4
MONEL400	≤0.30	≤0.5	≤2.00	–	≤0.024	–	≥63.0	–		≤34.0
INCONEL800	≤0.10	≤1.00	≤1.50	–	≤0.015	≤23.0	≤35	4.0~5.0	–	≤0.75
