1018 Cold Rolled Steel Coil

AISI 1018 carbon steel is a free machining grade that is the most commonly available grade around the world. Although its mechanical properties are not very, it still can be easily formed, machined, welded and fabricated.

Carbon Steel: Properties, Production, Examples and Applications

Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.

Types of carbon steel and their properties

Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:

Carbon content (wt.%)	Microstructure	Properties	Examples
Low-carbon steel	< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability	AISI 304, ASTM A815, AISI 316L
Medium-carbon steel	0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness	AISI 409, ASTM A29, SCM435
High-carbon steel	0.60 – 1.25	Pearlite	High hardness, strength, low ductility	AISI 440C, EN 10088-3

Carbon Steel Description

Grade:

1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E

2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q

3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80

4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE

PRODUCT DETAILS

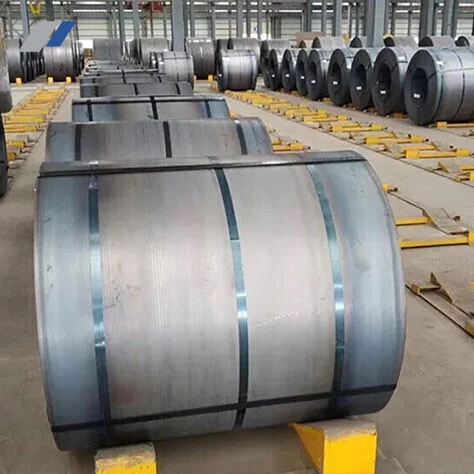

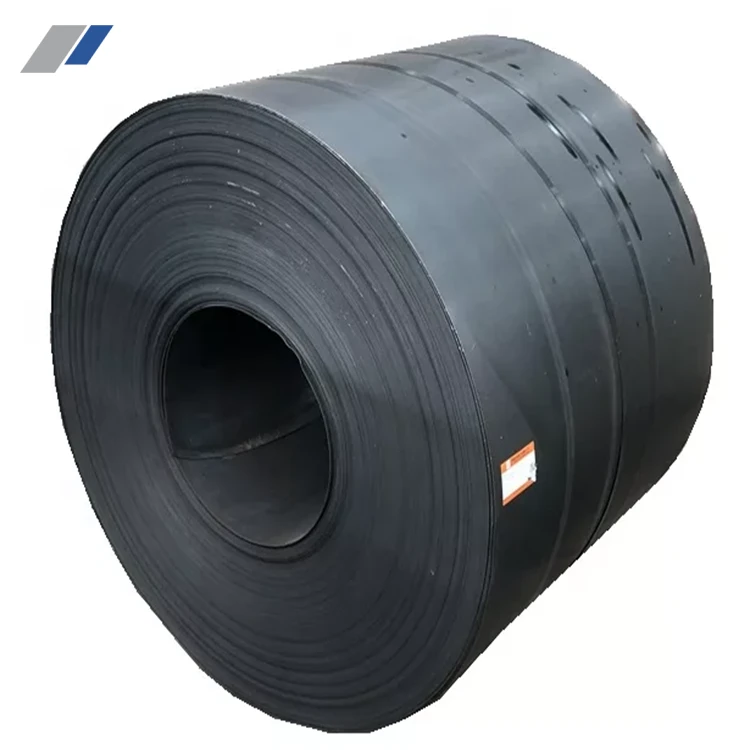

1018 Cold Rolled Steel Coil

1018 cold rolled steel coil is made of a general-purpose, low-carbon steel with good case hardening qualities. It is especially suited to cold forming and bending operations. 1018 steel is suitable for parts that require cold forming such as crimping, swaging, or bending. 1018 steel is mild steel with medium-low carbon content. AISI 1018 carbon steel is a free machining grade that is the most commonly available grade around the world. Although its mechanical properties are not very unique, it still can be easily formed, machined, welded and fabricated.

Product Parameters
Product Name	1018 Cold Rolled Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition
Element	Content (%)
Manganese, Mn	0.60-0.90
Carbon, C	0.15-0.20
Sulfur, S	0.05 (max)
Phosphorous, P	0.04 (max)
Iron, Fe	Balance

Mechanical Properties
Properties	Metric	Imperial
Tensile strength	440 MPa	63800 psi
Yield strength	370 MPa	53700 psi
Modulus of elasticity	205 GPa	29700 ksi
Shear modulus (typical for steel)	80 GPa	11600 ksi
Poisson’s ratio	0.29	0.29
Elongation at break (in 50 mm)	15%	15%
Hardness, Brinell	126	126
Hardness, Knoop (converted from Brinell hardness)	145	145
Hardness, Rockwell B (converted from Brinell hardness)	71	71
Hardness, Vickers (converted from Brinell hardness)	131	131
Machinability (based on AISI 1212 steel. as 100 machinability)	70	70
